Quality Utility and Flatbed Trailers - Iron Eagle Trailers

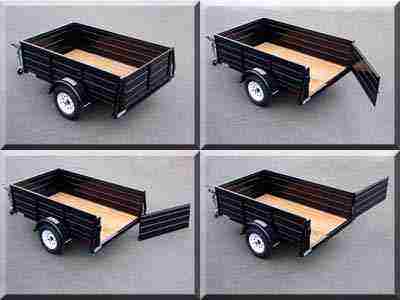

MagStandardSwingGate

Standard Feature

Swing-open tailgate pivots 180 degrees
and simply lifts off when open if desired.

A post and socket holds the tailgate open for convenience.

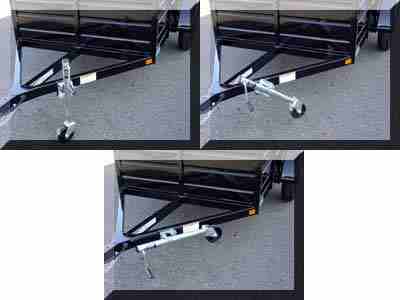

MagStandardTongueJac

Standard Feature

Tongue Jack is simple and easy to use. Crank the handle to raise and lower the tongue then release the locking pin and rotate it up for travel. The swivel castor enables easy maneuvering by hand.
VoyMagStandardProtectedTaillight

Standard Feature

Taillights are LED and very well protected from damage. Advantages of LED over incandescent lights are; LED lights are Much Brighter, Consume 1/3 power, Unaffected by External Shock and Vibration, and Last 50 Times Longer.
tiedown

Standard Feature

Tie-down hooks are placed
on every vertical wall post
6" from the top to secure
your cargo or a tarp. (10-14 depending on trailer size)
dring

Optional Feature

Recessed D-rings installed in the deck and are anchored directly to the frame. You choose how many and the locations.
StandardProtectedWir

Standard Feature

Wiring Done Right.

Superior wiring standards are a hallmark of Iron Eagle trailers.

Wires are always protected by grommets to eliminate the most common cause of short circuits.

Over 95% of the wiring is enclosed inside the box-tube frame making damage from snags,
and the elements impossible.
voyager_5k_opt

Optional Feature

5200 Lb axle increases the payload capacity to about 4000 lbs from the standard 2500 lbs. Electric brakes are included.

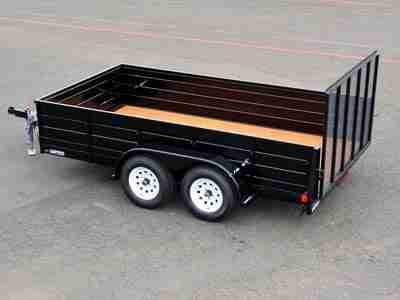

MagOptionsTandem

Optional Feature

Tandem Axles (dual axles) increase the payload capacity to about 4000 lbs from the standard 2500 lbs. The all wheels are equipped with electric brakes. You can request brakes on the rear axle only and save approximately $125 but it's not recommended and not allowed in some states.
VoyMagEcon3kAtvVersaModelOptionsCargoBox

Optional Feature

Storage box is constructed of rigid polypropylene. Its volume is 50 gallons and measures 36"w x 20"h x 21"d.

It is equipped with a locking latch and accommodates 2 additional pad locks.

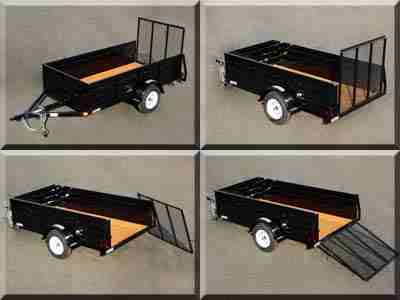

MagOptionsRampGate

Optional Feature

Ramp Gate folds up/down and is easily removable. Recommended for frequent ramp use such as a landscaping business. Note: Fitted cover is not compatible with this option.

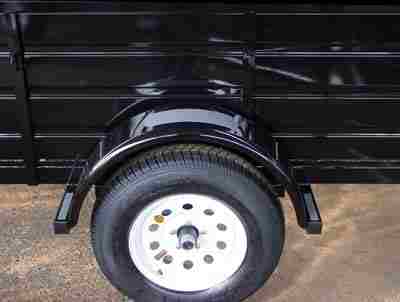

MagStandardFender

Standard Feature

Fenders are welded to heavy gauge tube supports for maximum integrity.

We actually install anti-slip material on the top surface of each fender for your safety.

You won't see a sticker that says "Not A Step" on an Iron Eagle Trailer.

Standard Feature

DuraGuard is a wood based product specifically designed for outdoor exposure.

The highway department uses the same type of material to construct road signs. DuraGuard is lighter than 16 gauge steel, cannot rust, and will take serious abuse.

DuraGuard was first installed in our Voyager Series trailers in 1995 and the originals are still going strong.
VoyMag3kStandardRampHardware

Standard Feature

Ramp System is included and consists of bracket hardware and an anchor rail across the rear of the trailer. Simply attach the supplied brackets to the end of suitable ramp material and your ready. It's a very effective and inexpensive ramp system that works!
AllModelStandardAccuLube

Standard Feature

Accu-Lube wheel bearing system makes wheel bearing maintenance a breeze.

Grease is channeled throught the spindle and into both inner and outer bearings. It takes just a few minutes once or twice a year.
boxtube

Standard Feature

Box tubing makes superior trailer frames and is the main component of every trailer frame we make.

Trailers often subject to heavy loads that are unevenly distributed causing high twisting force which can cause permanent damage.

Box tubing resists this twisting force far better than channel iron and significantly better than angle iron.
MagOptionsFittedCover

Optional Feature

The Fitted Cover is exceptional and will last longer than a dozen "blue tarps". The cover is made of heavy duty vinyl-coated polyester. It's the same material commercial truck tarps are made of. It's waterproof, UV resistant, tear resistant, and freeway-speed friendly. It's custom fitted to the trailer and the bungee cord is integrated in the cover. Removable aluminum bows are included to keep the center high and the rain out. Ramp Gate is not compatible with this option.
ptdeck1

Standard Feature

"Bulletproof Decking".

Every Iron Eagle trailer is equipped with pressure treated lumber to eliminate rot. The decking is also Kiln-Dried after treating to drastically reduce warping and shrinkage. Pressure-treated Kiln-dried deck is an exclusive feature of Iron Eagle.
VoyOptionsSparePostMount

Optional Feature

Spare tire carrier and spare tire. The carrier includes a pass-through hole for a cable or chain lock if needed.

We typically install it in front of the axle on the side of the trailer or you can specify alternate placement.
VoyMagEconAtvOptionsRearStabilizers

Optional Feature

Rear Stabilizers Great for loading/unloading your trailer while unconnected from the tow vehicle such as at a campsite or construction site. They quickly fold down and extend to accommodate uneven surfaces and have a capacity of 1000 lbs.

Optional Feature

Electric brake system is recommended for heavy payloads and/or if the tow vehicle is smaller (such as jeep, minivan, mini SUV, etc.)

Electric brakes will also reduce wear of the tow vehicle brakes. Your tow vehicle will need a dash mounted controller to operate the trailer brakes.

Standard Feature

Box tubing makes superior trailer frames and is the main component of every trailer frame we make.

Trailers often subject to heavy loads that are unevenly distributed causing high twisting force which can cause permanent damage.

Box tubing resists this twisting force far better than channel iron and significantly better than angle iron.
Home
utility trailer Voyager
utility trailer Magnum
utility trailer Economax
flatbed trailer Versamax
flatbed trailer 3000
atv trailer Atv
flatbed trailer 7000
10,000lb capacity flatbed trailer 10K
14,000lb capacity flatbed trailer 14K
14,000lb capacity flatbed trailer Titan Series

Magnum Series™

This steel sided utility trailer is the most durable and rugged utility trailer you will find.We designed this trailer to handle all of the demands and abuse of commercial use, without the commercial trailer price. From general-purpose home use to heavy duty landscaping and construction,this trailer will handle it all. The 3500 lb rated axle and the 15"-6ply rated tires combined with the exceptional stability of the extra long tongue will allow you to tow the heaviest loads with confidence. A simple ramp accessory kit is also included that enables you to make a pair of inexpensive and effective lumber ramps if you need them.

Magnum series utility trailers incorporate the same rugged frame design as our popular Voyager Series but with16 gauge steel side paneling instead of DuraGuard. Compared to other steel sided utility trailers, the Magnum Series is better in every respect. We put a lot of features and detail into every trailer.The small details like Kiln Dried Pressure Treated decking, Castor Tongue Jack, Protected LED Taillights,and Enclosed Wiring add to the usability and reduce required maintenance. Compare Iron Eagle Magnum Series to other steel sided trailers, you'll be amazed at the difference in quality and value.

Ask anyone you see towing an Iron Eagle trailer about the quality and value and get their opinion; we know it will be good.

Available Sizes 4x6 4x8 5x8 5x10 5x12 6x8 6x10 6x12
Color Choices (No additional charge) Black, Charcoal

Contact your nearest Iron Eagle dealer for availability
